SPM01/UZ Energy Meter (1P+N, 63A, Standard Zigbee)

SPM01/UZ Energy Meter (1P+N, 63A, Standard Zigbee)

€41,80
€41,80
Sale Sold out
Tax included.
Installation Options
SPM01 smart energy sensor - also named as smart energy monitor- is an electrical monitoring device with wireless or wired communication. It works like a smart electrical monitoring accessory for protective and control devices - such as circuit breakers and modular contactors.
View full details

Let's get into the details.

Highlights

  • Accurate metering: High-precision energy measurement within 1% tolerance
  • Easy installation: Flexible installation at the upper /bottom side of circuit breakers and easy communication setup
  • Space saving: Easy fitting into existing or new power distribution board without occupying any space at Din-rails
  • Smart life: Useful smart features include bi-directional metering, chart analysis, alarm messaging, scene setting, etc.

Tech Specs

  • Rated operating voltage Un: 220~240 VAC, 50Hz
  • Poles: 1P+N
  • Max current Imax 63 A
  • Over-voltage category: III
  • Rated insolating voltage Ui 250V
  • Energy measurement accuracy: 1%
  • Power consumption: Normal using 0.5 Watt / Pairing mode 1 Watt
  • Rated operating temperature: -25 ~ 60 ℃
  • Size: Height x Width x Depth: 46.8mm x 17.8mm x 21.3mm

Delivery

We ship to most countries worldwide.

  • Shipping Charges:
    Free shipping is available for all orders with a checkout amount of $90 or more. A shipping fee of $9.90 will be charged for all orders with a checkout amount less than $90.
  • Customs and Duties:
    Customs fees or import taxes may be charged to countries outside the European Union, North America, and the United Kingdom. Bituo Technik does not take responsibility for these fees; the recipient must cover these charges.
  • Shipping Times:
    Please be aware that international shipping times may vary and are subject to customs regulations in the destination country.

After-sales

180-day satisfaction guarantee.

Step 1

Easy Installation

Install SPM at your consumer unit. Start monitoring your total household energy consumption, or big/medium loads' usage specifically.

Step 2

Quick Setup

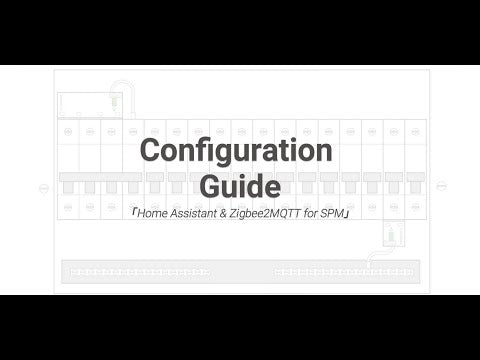

Install a Zigbee 3.0 Dongle for software integration.

Step 3

Analyze Usage

After configuring the Zigbee 3.0 dongle, users can obtain raw data and choose to view it on Home Assistant (Zigbee2MQTT) or other platforms.


Analyze your energy consumption data to identify peak usage periods and the appliances driving it.

Discover areas of potential wastage where energy consumption exceeds expectations.

Step 4

Optimize Consumption

By aligning your power usage habits with data patterns, you can identify and eliminate unnecessary consumption, such as left-on lights or continuous water heating.

Utilize the historical data stored in the cloud to track your energy-saving progress.
