SPM02/MCBM Miniature Energy Meter

SPM02/MCBM Miniature Energy Meter

$63.38
$63.38
Sale Sold out
Shipping calculated at checkout.
Connectivity

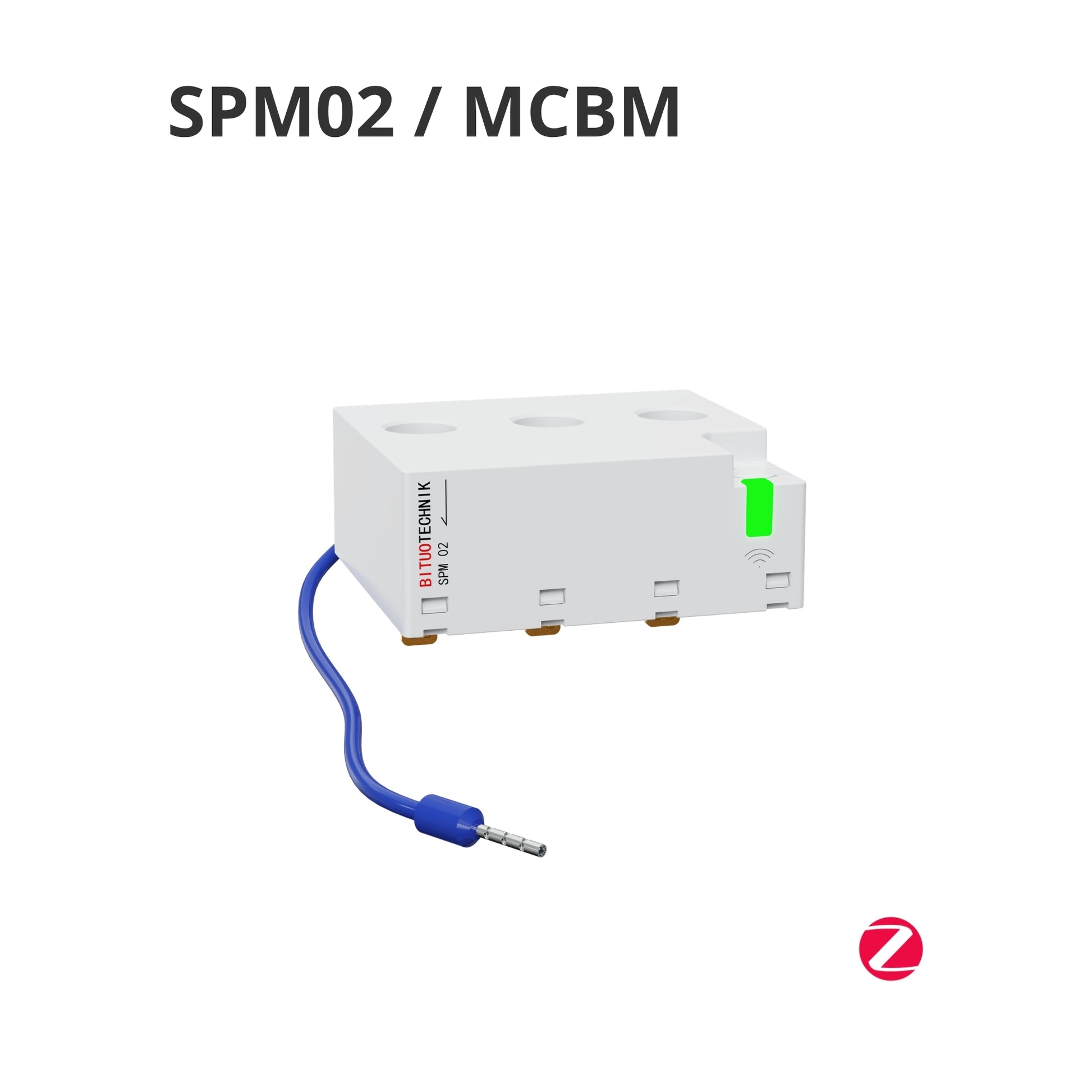

The SPM02/MCBM (MCB-Mounting Version) Miniature Energy Meteris an advanced electrical monitoring device designed for three-phase applications, specifically designed for seamless integration with miniature circuit breakers (MCB).

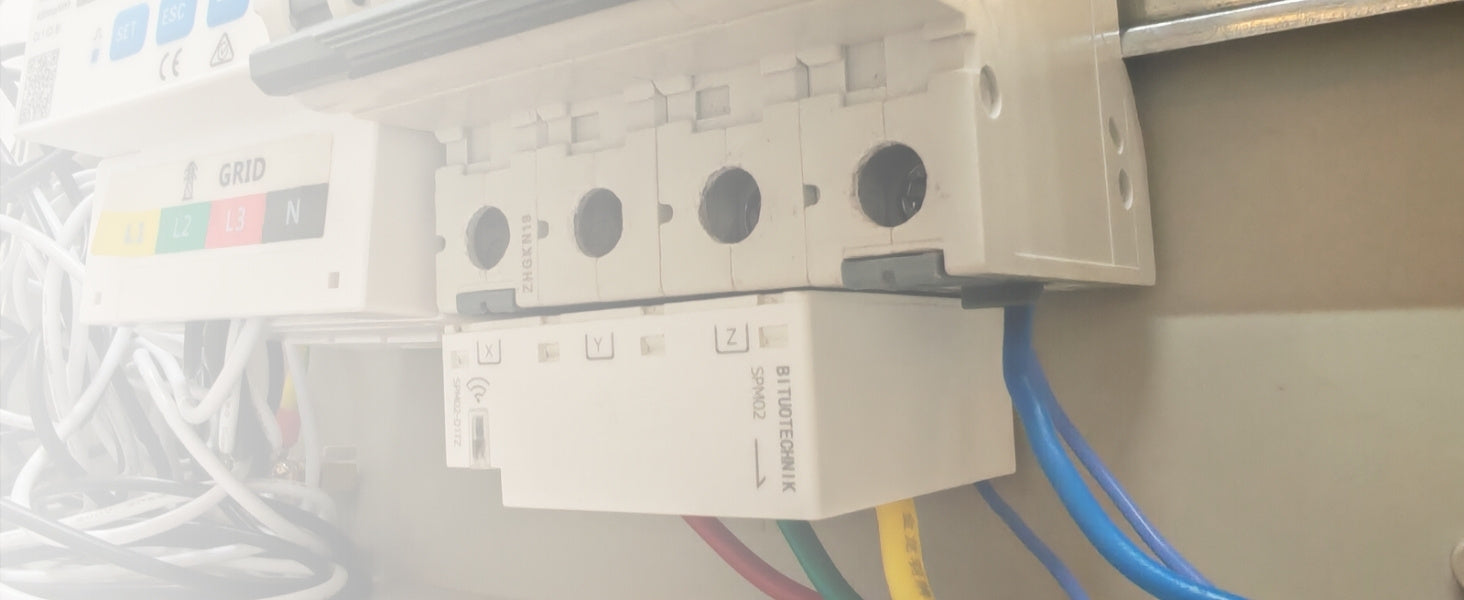

- Ultra-Compact Installation: Optimize your panel layout. It mounts directly alongside circuit breakers without consuming valuable DIN-rail space, ideal for high-density distribution boards.
- Real-Time Power Tracking: Gain instant visibility into your electrical network. It captures voltage, current, and power factor metrics instantly to help drive energy efficiency strategies.
- Built for Heavy Loads: Features a wide 9.6mm aperture that easily accepts up to 16mm² wiring, safely and reliably supporting measurements up to 63A.
- Uncompromising Precision: Certified Class 1 accuracy (IEC 61557-12) ensures every watt is tracked with professional-grade reliability for critical monitoring tasks.
- Standard Zigbee 3.0 Integration: Powered by standard Zigbee 3.0. It ensures seamless, cloud-independent connectivity with major smart hubs and gateways for rapid deployment.

Download: Datasheet | Manual
Remarks
1) The manufacturer has only verified the compatibility of the SPM01 MCBM with Siemens 5SY/5SL series, including tests on wiring capacity, thermal performance, and mechanical fit etc. For compatibility with other circuit breaker brands, please contact us directly.
2) The flexible version is recommended if you are unsure about MCB-mounting compatibility with your circuit breakers



View full details
Variant Variant total Quantity Price Variant total

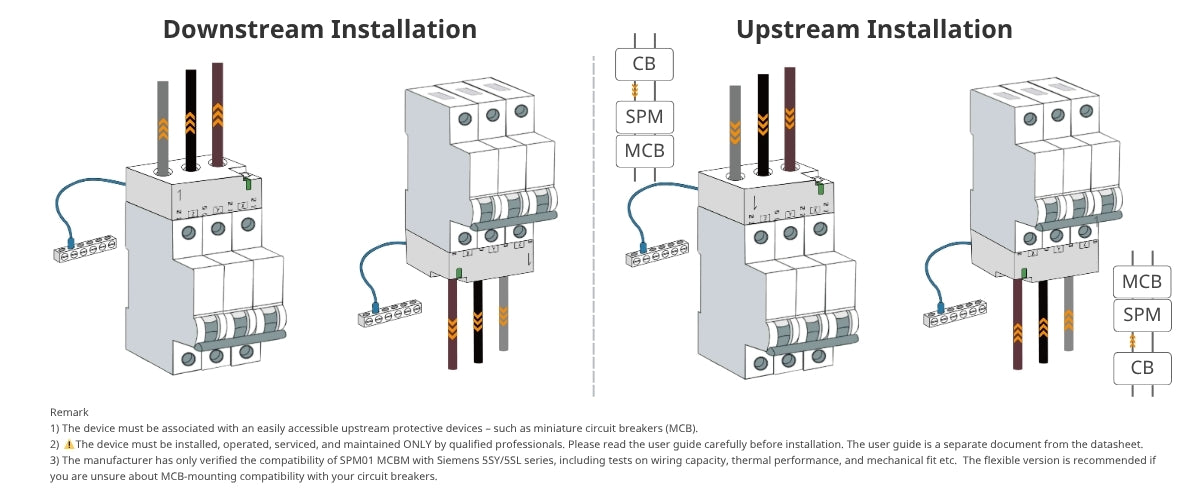

Upstream Installation | 5SY/5SL Compatible (SPM02-U1TZ-U01)
Upstream Installation | 5SY/5SL Compatible (SPM02-U1TZ-U01)
$63.38/ea		 $0.00
$63.38/ea $0.00
Downstream Installation | 5SY/5SL Compatible (SPM02-D1TZ-U01)
Downstream Installation | 5SY/5SL Compatible (SPM02-D1TZ-U01)
$63.38/ea		 $0.00
$63.38/ea $0.00
Upstream Installation & RS485-Modbus RTU | 5SY/5SL Compatible (SPM02-U1M1)
Upstream Installation & RS485-Modbus RTU | 5SY/5SL Compatible (SPM02-U1M1)
$56.08/ea		 $0.00
$56.08/ea $0.00
Downstream Installation & RS485-Modbus RTU | 5SY/5SL Compatible (SPM01-D2M1)
Downstream Installation & RS485-Modbus RTU | 5SY/5SL Compatible (SPM01-D2M1)
$56.08/ea		 $0.00
$56.08/ea $0.00
View cart
0

Total items

$0.00

Product subtotal

Taxes, discounts and shipping calculated at checkout.
View cart

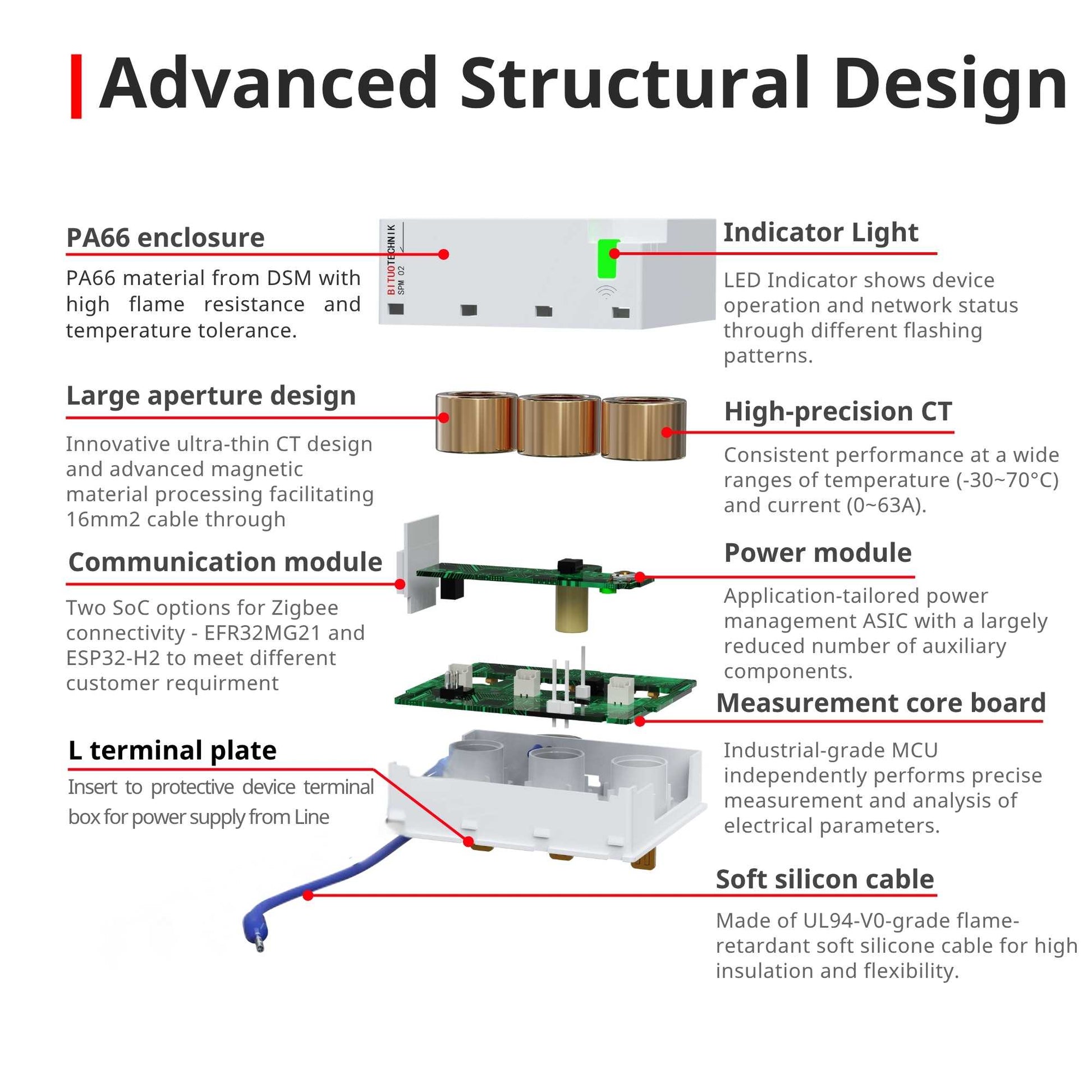

Pass-through hole for L wire

L wire passes through the hole for current measurement.

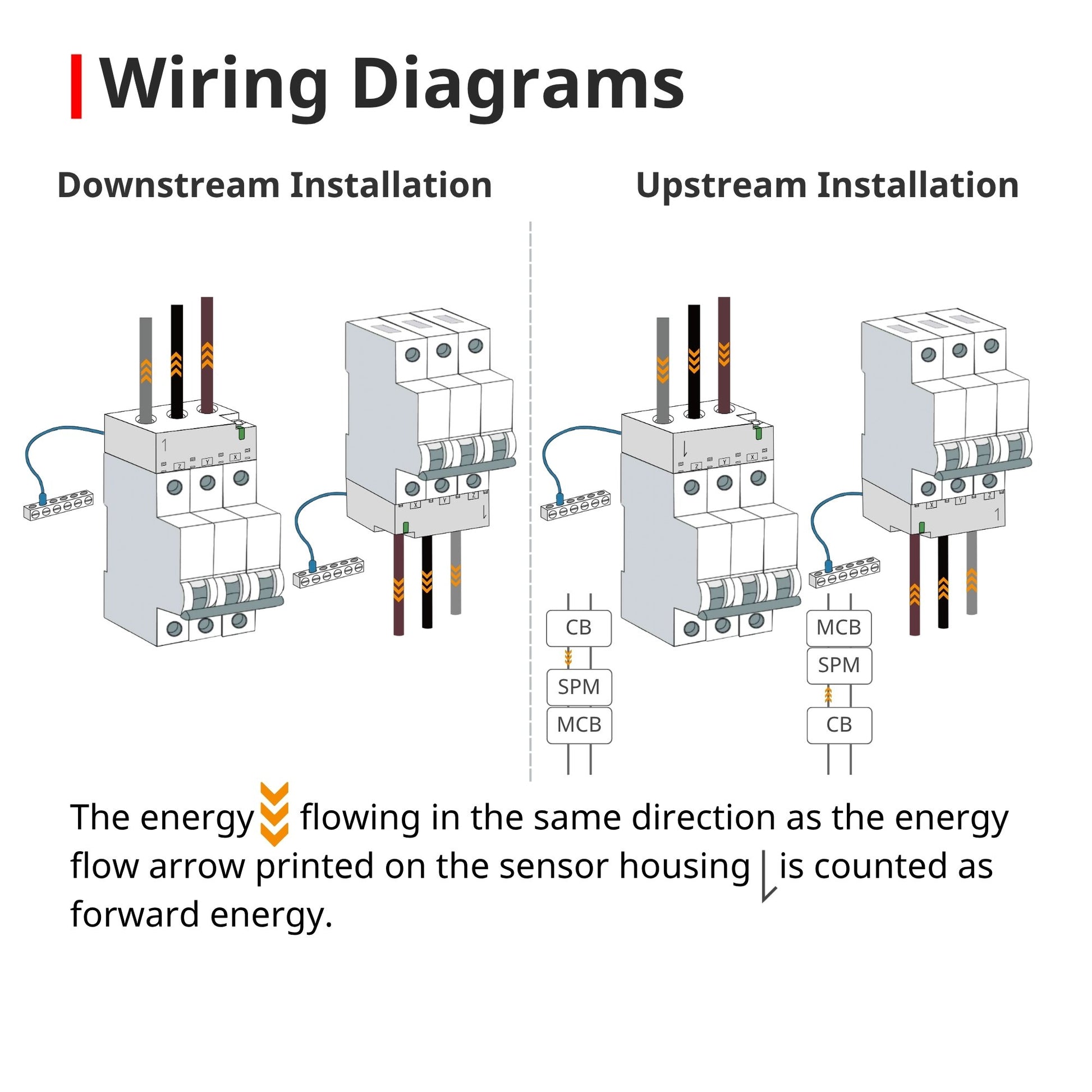

Forward Energy Flow Direction

The arrow indicates forward / positive power flow for installation.

Terminal plate for L connection

Insert to protective device terminal box for power supply from Line

Reset Button

Hold for 3–5 seconds to activate 2.4GHz wireless communication pairing or to reset the configuration.

Indicator Light

LED Indicator shows device operation and network status through different flashing patterns.

Cable for Neutral (N) connection

The blue cable connects to power supply from Neutral and voltage meaurement.

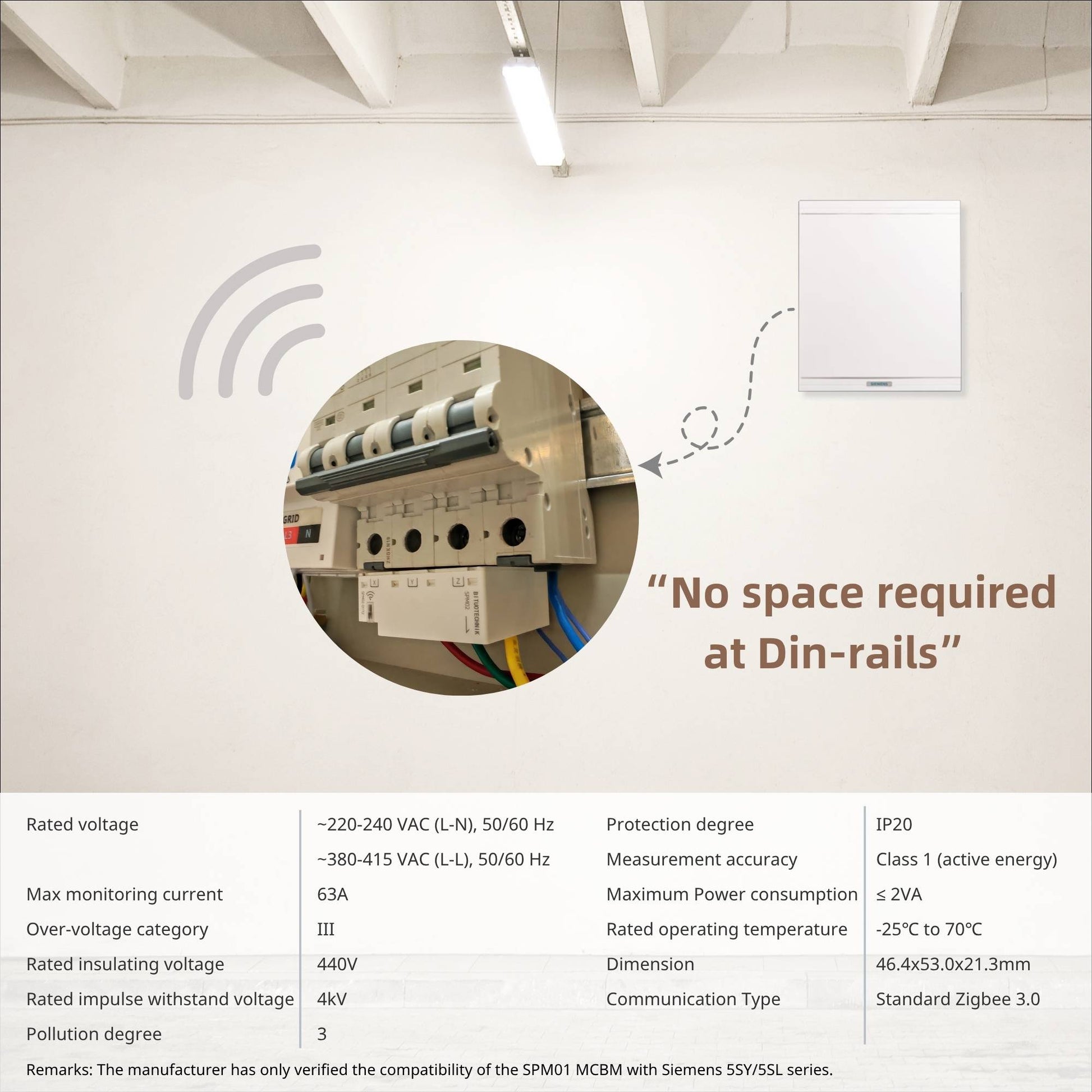

Technical Information

  • Rated voltage: 220-240(L-N) / 380-415 VAC(L-L), 50/60Hz
  • Max monitoring current: 63 A
  • Over-voltage category: III
  • Rated insulating voltage: 440 V
  • Rated impulse withstand voltage: 4 kV
  • Pollution degree: 3
  • Protection degree: IP20
  • Energy measurement accuracy: Class 1 (Active energy, IEC61557-12)
  • Maximum power consumption: ≤ 2 VA
  • Rated operating temperature: -25℃ to 70℃

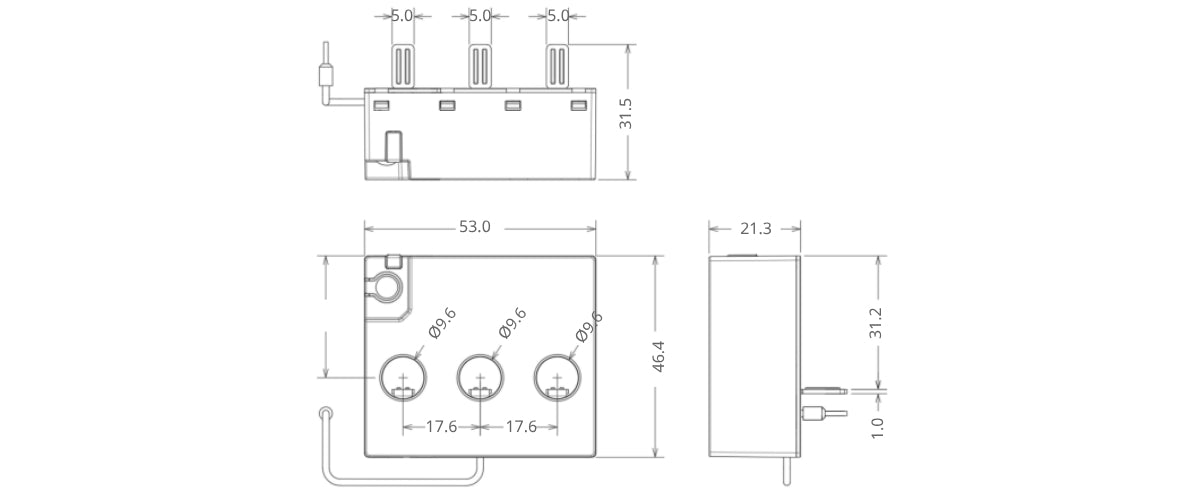

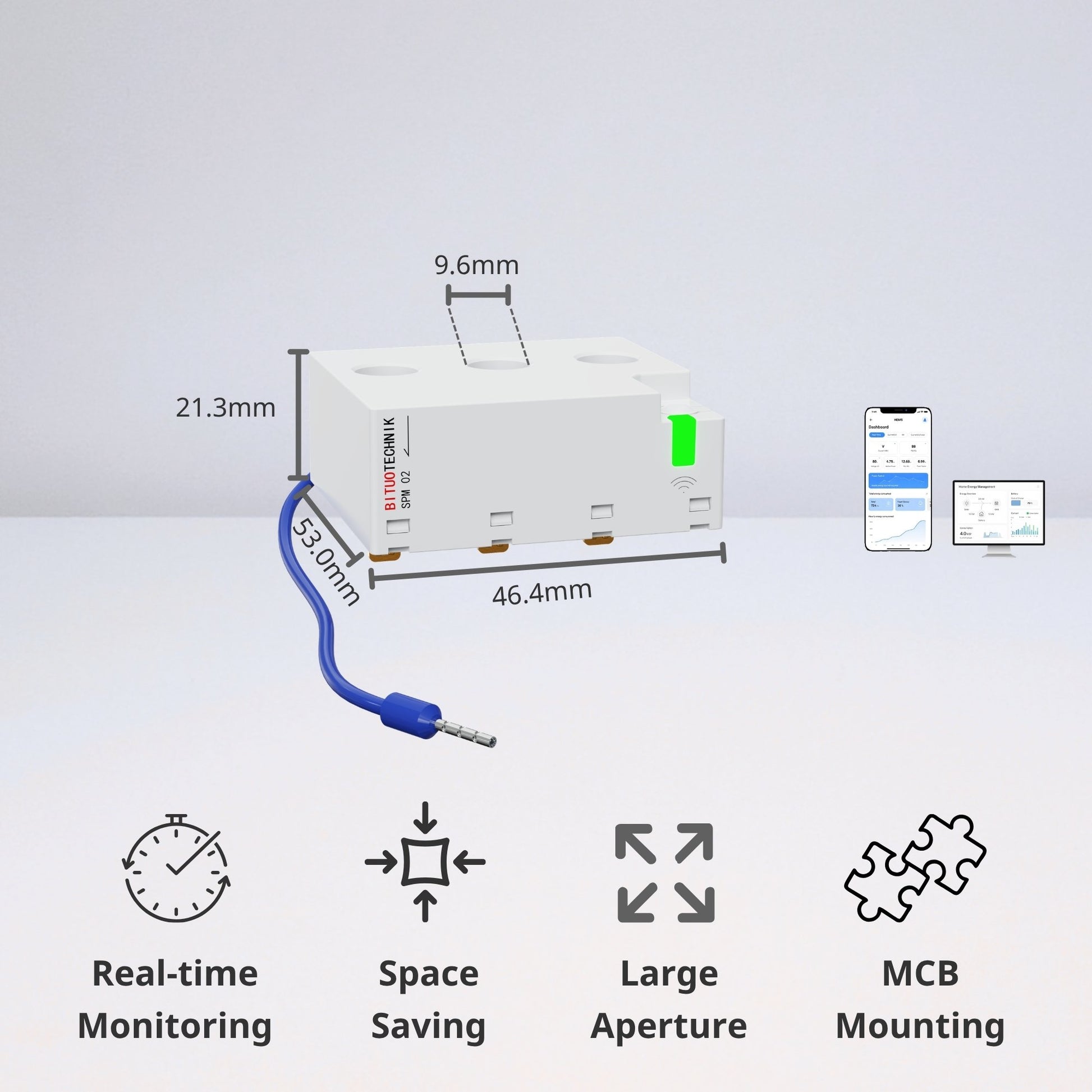

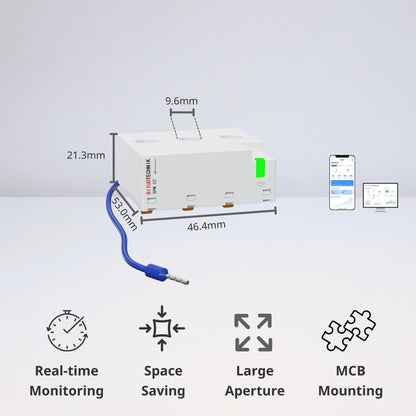

  • Main Module Dimension: 46.4x53.0x21.3mm
  • Through-hole Aperture: Ø9.6 mm
  • Communication type: Standard Zigbee 3.0
  • Compatible circuit breakers1) 2): Siemens 5SY/5SL

Remarks
1) The manufacturer has only verified the compatibility of the SPM01 MCBM with Siemens 5SY/5SL series, including tests on wiring capacity, thermal performance, and mechanical fit etc. For compatibility with other circuit breaker brands, please contact us directly.
2) The flexible version is recommended if you are unsure about MCB-mounting compatibility with your circuit breakers.


FAQ

Does SPM02 support bi-directional energy measurement?

Yes. The real energy flowing in the same direction as the energy flow arrow printed on the sensor housingis counted as forward energy.

Can I get a discount if I buy more units?

Yes. For bulk orders, you can refer to our Bulk Sales policy.

If you are interested in becoming a certified reseller, system integrator, or installer, you are also welcome to contact us directly via the email, WeChat, or WhatsApp details provided in the page footer.

How long does it take to ship after placing an order?

Orders are dispatched from our warehouse in Shanghai. Under normal conditions, delivery to most countries worldwide takes around 7–14 days.

What happens to energy data if the internet is disconnected?

The SPM02 MCBM continues to record cumulative energy consumption locally even when offline. No data is lost — once the internet connection is restored, the device automatically syncs the total accumulated energy to the cloud.

If the offline period is too long, the system may not display smaller time-scale energy data correctly.

Which circuit breakers are compatible with the SPM02 MCBM?

Currently, the manufacturer has officially verified compatibility with theSiemens 5SY and 5SL series. This verification includes comprehensive testing for wiring capacity, thermal performance, and mechanical fit.


The flexible version is recommended if you are unsure about MCB-mounting compatibility with your circuit breakers.

Can the SPM02 MCBM be flashed with custom firmware?

Technically yes. However, westrongly advise againstdoing so, as the device containshigh-voltage circuits that pose safety risks during modification.

Does the SPM02 MCBM support measurement of three single-phase circuits?

Yes， you can connect the brown, black, and gray live wires to the same phase line, and the device will measure all three single-phase circuits correctly.
